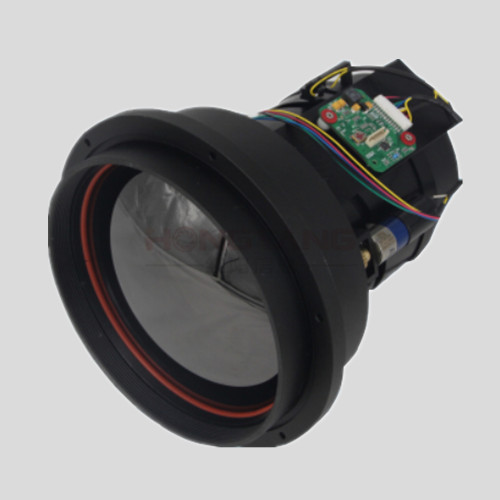

35/150mm熱成像雙視場鏡頭采用鍺玻璃制成，具有視場切換快的特點，一般與熱成像探測器、云臺、可見光一體機機芯或者長焦監控鏡頭集成熱成像云臺攝像機，一般用于特定視場的目標監控。
項目/ Item | 數值/ Value | 說明/ Remark | ||
焦距/ Focal Length | 35&150mm | 2 FOV | ||
F/# | 1.1(150mm)&1.0(35mm) | |||
波段/ Waveband | 8~12μm | |||
透過率/ Transmission | 80% | 8~12μm，average | ||
畸變/ Distortion | <3%(35mm) | <1.5% (150mm) | ||
后工作距離/ BWD | 14mm | Back Working Distance | ||
MTF / at 20cy/mm | >35% at all zoom positions | |||
調焦范圍/ Focus Range | 3m~∞ (35mm) | 20m~∞ (150mm) | ||
調焦時間/ Focus Time | <7s | |||
變焦時間/ Switch Time | <3s | |||
驅動電壓/ Drive Voltage | DC12V (0.5A average) | |||
機械尺寸/ Dimensions | Φ170×L174.4mm | |||
重量/ Weight | 2.5kg | |||
鏡頭控制/ Lens Control | RS485 | 可定制Upon Request | ||
密封等級/ Sealing | IP67 | Front Lens | ||
工作溫度/ Working Temperature | -20℃~+60℃ | |||
存儲溫度/ Storage Temperature | -45℃~+85℃ | |||
探測器及視場角 / Detector and FOV | ||||
384×288,17μm | 2.49°×1.87°&10.6°×8° | 640×480,17μm | 4.15°×3.12°&17.7°×13.3° | |
